Why specification of Bitumen 60/70 is important?
Bitumen 60/70 one of the most commonly used grades of bitumen in road construction and industrial applications. Specification is important since Its widespread use stems from its optimal balance between hardness and flexibility, making it a favorite choice for asphalt pavements that must endure heavy traffic and diverse climatic conditions. This guide will take you deep into the physical and chemical attributes of Bitumen 60/70, its production methods, testing procedures, and much more. So, buckle up as we dive into the sticky but fascinating world of this crucial construction material.
Úvod do Bitumenu 60/70
The Bitumen 60/70 is a penetration-grade bitumen that refers to its hardness level. The numbers 60 and 70 indicate the range of penetration depth (measured in tenths of a millimeter) a standard needle can reach when pressed into the bitumen under specific conditions. A penetration value between 60 and 70 means this bitumen has a medium hardness and is neither too soft nor too brittle.
Bitumen itself is a viscous, black, and sticky substance derived from crude oil distillation. It’s primarily used for binding aggregates in road construction, but its role goes beyond roads—reaching into waterproofing, roofing, and even industrial manufacturing. Bitumen 60/70 stands out due to its versatility and performance under varying temperatures.
Its physical appearance is black and shiny, but the real magic lies in how it behaves under load and temperature shifts. Whether it’s blazing hot or freezing cold, this grade of bitumen maintains its structural integrity, which is why it’s so heavily preferred in temperate and subtropical regions.
Importance of Bitumen in Construction
Our Bitumen is literally the glue that holds roads together. In construction, it acts as a binder mixed with aggregate to form asphalt. Without bitumen, roads would crumble under the stress of daily traffic, water infiltration, and changing weather.
Besides roads, bitumen plays a huge role in waterproofing structures, protecting foundations, and even in soundproofing. Bitumen 60/70, in particular, is crucial because of its ability to perform well in medium-temperature environments, making it a globally traded product.
Its flexibility, cost-effectiveness, and durability make it irreplaceable in most modern-day construction projects. Whether it’s a rural road in a developing country or a busy expressway in a metropolis, Bitumen 60/70 is likely under your wheels.

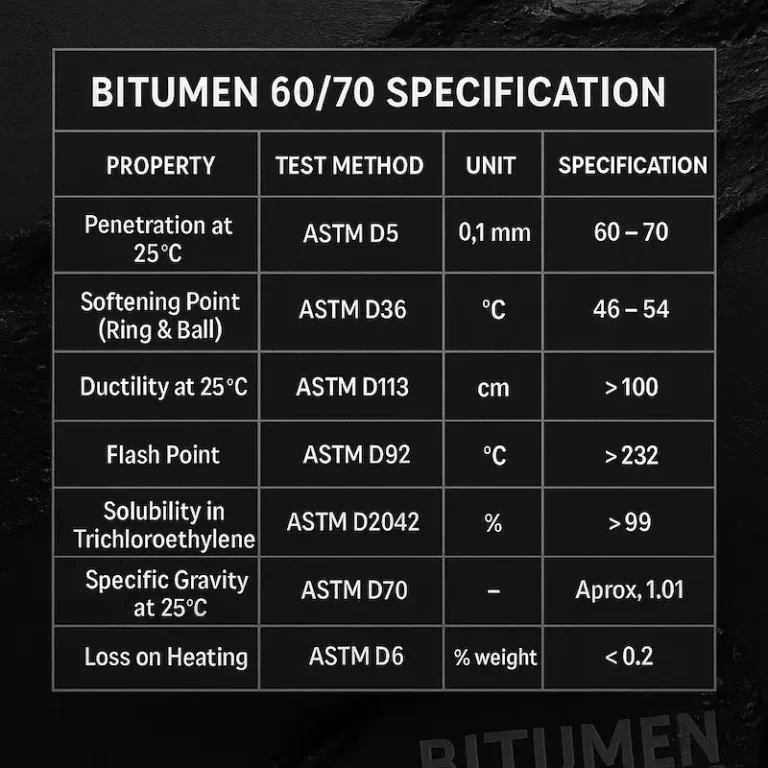

Physical Properties of Bitumen 60/70
Hodnota penetrace
The penetration value is a key metric that defines the hardness of bitumen. For Bitumen 60/70, this value ranges from 60 to 70 deci-millimeters. This means a needle under a load of 100 grams for 5 seconds at 25°C will penetrate between 6 and 7 millimeters into the bitumen.
This test helps engineers understand how soft or hard the bitumen will be in real-world applications. A higher penetration value means a softer material, which is ideal for colder climates. A lower penetration means a harder bitumen, better for hotter climates. Bitumen 60/70 offers a balanced hardness, making it suitable for a wide range of conditions.
This range of penetration ensures the bitumen has enough resistance to deformation under heavy traffic and yet is flexible enough to avoid cracking in low temperatures. That’s why road builders often pick this grade—it’s the Goldilocks zone of bitumen hardness.
Bod měknutí
Another critical physical property is the softening point, usually measured using the Ring and Ball test. For Bitumen 60/70, the softening point lies between 46°C and 54°C. This tells us the temperature at which the bitumen transitions from a semi-solid to a viscous liquid.
Why does this matter? Imagine a road in a hot region—if the bitumen softens too early, it can lead to rutting and deformation. Bitumen 60/70’s softening point ensures that roads remain stable even during the hottest days of summer.
The Ring and Ball test involves heating a sample of bitumen and observing the temperature at which a steel ball drops through it. The precise measurements make this a trusted method to determine if a particular batch of bitumen will withstand the environmental conditions it’s meant for.
Kujnost
Ductility is the measure of a material’s ability to deform under tensile stress. For Bitumen 60/70, this value should be more than 100 cm. That means the bitumen can stretch over a meter without snapping—a key property when considering expansion and contraction due to temperature changes.
Why is ductility important? Because roads expand and contract all the time. Bitumen that can stretch without breaking helps avoid cracks, potholes, and overall structural failure.
To test this, a sample is pulled apart in a ductilometer until it breaks, and the distance stretched is recorded. High ductility ensures the bitumen can absorb the stress from moving traffic and thermal changes without giving way.
Chemické složení bitumenu 60/70
Hydrocarbon Structure
So far Bitumen 60/70 is composed predominantly of complex hydrocarbons. Around 95% of its content is hydrocarbons, while the remaining 5% consists of sulfur, oxygen, nitrogen, and trace metals. These hydrocarbons are classified into four main groups:
-
Asphaltenes: Provide rigidity and stiffness.
-
Resins: Offer bonding characteristics.
-
Aromatics: Contribute to fluidity.
-
Saturates: Add to the flexibility.
The balance among these four determines how the bitumen behaves under stress, heat, and pressure. Bitumen 60/70 offers a well-balanced mix, making it durable and flexible.
The carbon-to-hydrogen ratio and the molecular weight of the compounds within bitumen can significantly influence its performance. Engineers and chemists study these components in labs to ensure the batch meets regulatory and project-specific standards.
Additives and Impurities
While bitumen is primarily hydrocarbon, certain additives are introduced to improve its performance. These include:
-
Anti-stripping agents: To enhance adhesion with aggregates.
-
Polymers: For increased elasticity and temperature resistance.
-
Fibers: To improve strength and durability.
However, bitumen can also contain impurities like water, dust, or other residues from the refining process. These impurities can negatively impact performance, which is why stringent quality control tests are a must.
